Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

Name: Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price
Brand: HYCM-TOWER CRANES
Price: 1 USD

Wholesale Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price from china suppliers

Brand Name : HYCM-TOWER CRANES

Model Number : QTD230(5520) luffing crane

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set of luffing crane

Price : Negotiation

Payment Terms : 30% advance payment and balance before shipment or by copy of B/L

Supply Ability : 150 pcs of luffing crane per month

Delivery Time : about 50 days after receiving the advence payment

Packaging Details : In nude or as customized, 20'GP or 40'HQ containers for luffing crane

Type : Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

Main materials : 200*26 mm/angle steel/ Q345B

Tip Load : 2ton

Hoisting speed : 0-72 0-36m/min

Power supply : 380V/60Hz or according to your requirments

Electric switch box : Schneider

Slewing speed : 0-0.57r/min

Torlleying speed : 0-10m/min

Color : based on your requirements

Mast section dimension : 2*2*3m

Contact Now

Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

Our Service for Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

Quality Assurance

Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.

The Fastest Reply

Detailed information,specific model and price of products will be provided quickly after receiving inquiry.

Excellent Package

We provide standard, strong, protective package for our products to prevent it from outer damage.

Warranty Assurance

For our tower crane, we provide 1 year (from BL date) warranty period and quick replace service.

Specifications for Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

Main Performance		Main Specifications
Rated lifting moment (KN.m)		2300
Max. lifting load(t)		18
Tip load(t)		2.0
Working range(m)		5~55
Lifting height(m)	Freestanding height	65
Lifting height(m)	Attaching height	260
Mast section	Main limb (mm)	∠200X200X26/ Q345B
Mast section	Section size(mm)	2000X2000X3000
Lifting jib	Upper chord(mm)	80X8 Square tube / Q345B
Lifting jib	Lower chord(mm)	100X8 Square tube / Q345B
Counter jib	Length(m)	7530
Hoisting mechanism	Reducer	75TLQ45
	Motor	YZP280S1-4--75KW
	Brake	YWZ-315/45
	Wire rope	35W×7-20-1960 I right lay
	Hoisting speed (m/min)	0-72 0-36
Slewing mechanism	Reducer	HP90.160.195
	Motor	YPHW132L2-4-9KW
	Slewing speed (r/min)	0-0.57
Trolleying mechanism	Reducer	45TLQ25
	Motor	YZTPF225M-4-J13021-45KW
	Trolleying speed( m/min)	0-10
Jacking-up speed	Hydraulic pump station Jacking oil cylinder	TQZ230/180/125
Jacking-up speed	Motor	11KW
Slewing bearing	Type	1600.45

Services for Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

1. Installation, debugging, operators trainning;

2. Maintanence:

A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;

B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;

C. Call us at any time if you have problems about our tower crane;

D. If needed, we will send engineers to your site to solve your problems.

3. Providing some documents for your customs clearance, like commercial invoice, packing list, certificate of origin etc;

4. Spare parts supply.

5. More products for you to choose

FAQ for Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

1. Why choose us?

1. Schneider electric components;

2. Robot welding;

3. CE, ISO, GOST, CU-TR certificates;

4. 16 years' experience

5. Factory

2. Does your company supply other machineries?

We are manufacturer for construction machinery including tower crane, construction hoist and concrete batching plant with high quality. Customers can pick what they need from one cooperative partner to save time.

3.Trade terms?

Payment: T/T, L/C

Delivery:30 days, If there are stock machineries,the delivery time within 5 days.

MOQ:1set

4.what’s your company advantages?

Professional and Systematic manufacturer. Our team can offer more professional operation in International trade.

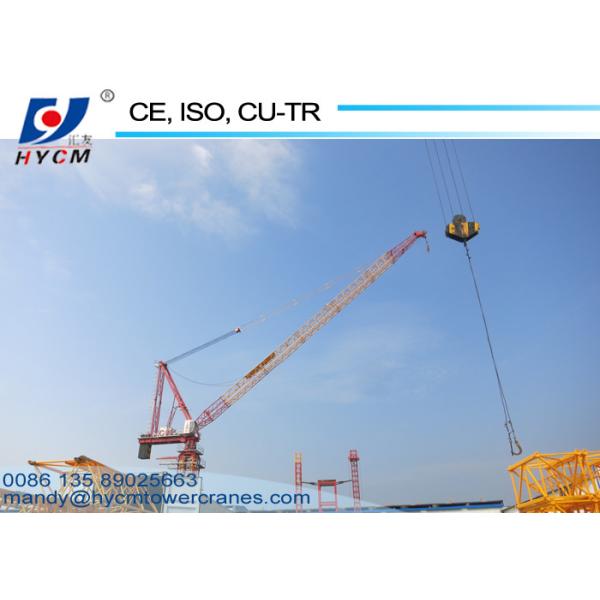

Photos for Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price

Widely Use 55m Jib Length 18Ton QTD5520 External Climbing Luffing Crane Price Images
